Four Bar Rotatry Machine

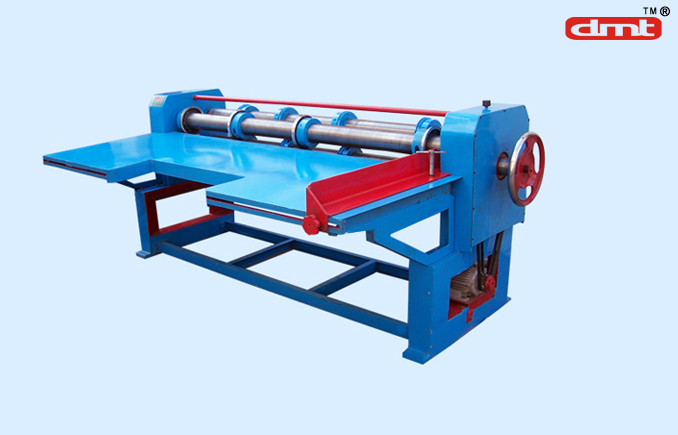

4-Bar Rotary slittering & creasing machine

With 4 Set Of Slittering Dies & Sets Of Creasing Dies. The Machine Has Two Pairs Of Shafts. The Front Pair Is With Cutting Dies And Rear Pair Is With Creasing Die. The Lower Shaft Of Each Pair Can Be Raised Or Lowered By Revolving Side Wheel Depending On Ply Of The Board. For Easy Feeding Two Guides Are Provided. (Output – 300ft/min)

Technical Data

Size	Motor H.P.	Weight App. (MT.)	Floor Space
65″	3	1.7	7′ x 5′
75″	3	2.0	8′ x 5′
85″	3	2.2	9′ x 5′
95″	3	2.8	10′ x 5′
105″	3	3.4	11′ x 5′
