WHY CHOOSE DEEP MACHINE TOOLS

Deep Machine Tools ^® is one of the leading manufacturers of high quality, precision and high productivity corrugated box machines. Our Products have been widely used all over India, with a well established reputation in the industry.

Our packaging machines are indispensable for packaging industry with a strong market share as a leading manufacturer of Corruagted Box Making, Ecentirc Sloter Machine, Four Bar Rotatry, Pasting, Rotary Share, Power Stiching, Automatic real Stand and Corner Sloter Machines.

Building Strong Foundations, Delivering Excellence Every Time

Upgrade your packaging process with our high-performance cardboard making machines. Built for efficiency, durability, and maximum output.

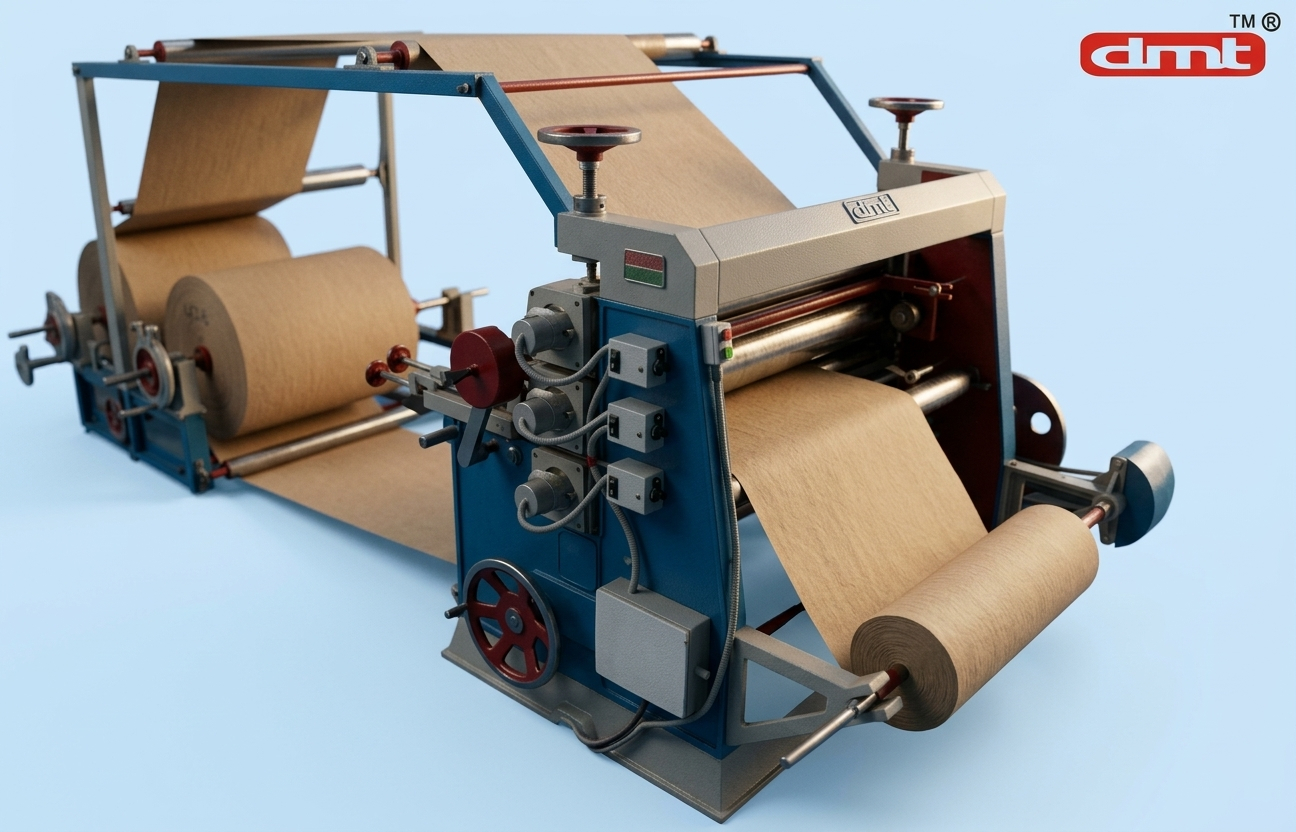

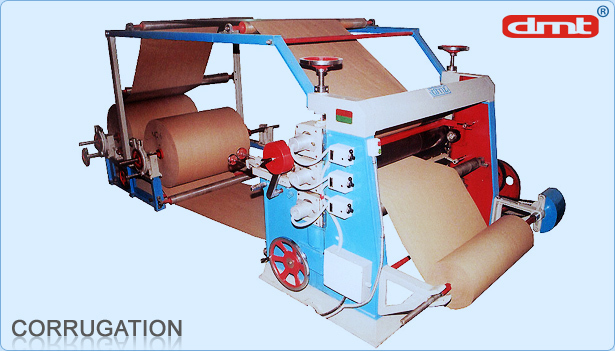

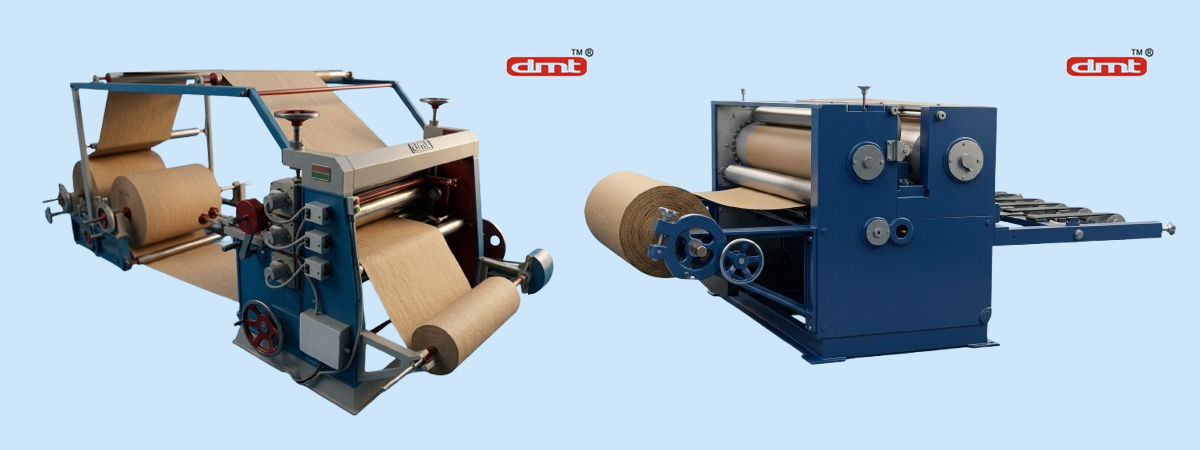

High Speed SIngle Face Paper Corrugating Machine 9″

Extra Heavy Duty New Mode Bearing Mounted 2 Ply Corrugated Board, Simple To Operate With Manual Loading Twing Shaft Reel Stand. (Output – 70ft/min)

Technical Data

Size	Motor H.P.	Heating Load	Weight App. (MT.)	Floor Space
46″	5	18 kw	4.1	8.0′ x 15′
52″	5	21 kw	4.9	8.5′ x 15′
62″	7	21 kw	5.0	9.5′ x 15′

Single Face Paper Corrugating Machine 7″1/2

Bush Mounted For Manufacturing 2 Ply Corrugated Board, Simple To Operate With Manual Loading Twine Shaft Reel Stand. (Output – 40ft/min)

Technical Data

Size	Motor H.P.	Heating Load	Weight App. (MT.)	Floor Space
46″	5	18 kw	3.5	8.0′ x 15′
52″	5	21 kw	4.1	8.5′ x 15′
62″	7	21 kw	4.5	9.5′ x 15′

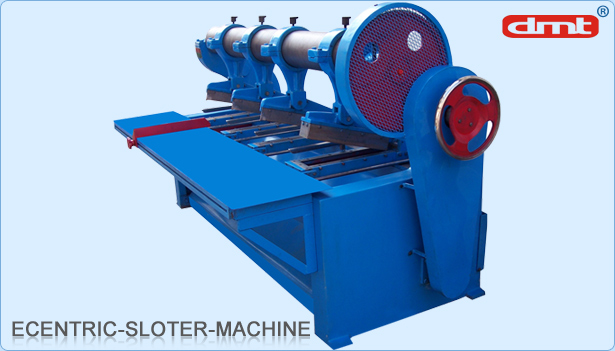

Ecentric Sloter Machine

With 3 Slotting Heads & One Corner Cutting Head. Two Guides Are Provided To Faciliate Easy Feeding And Correct Dimension.

Technical Data

Size	Motor H.P.	Max. Slot Depth	Weight App. (MT.)	Floor Space
75″”	3	18″	2.2	8′ x 4.5′
85″	3	18″	2.4	9′ x 4.5′
95″	3	18″	3.0	10′ x 4.5′
105″	3	18″	3.6	11′ x 4.5′

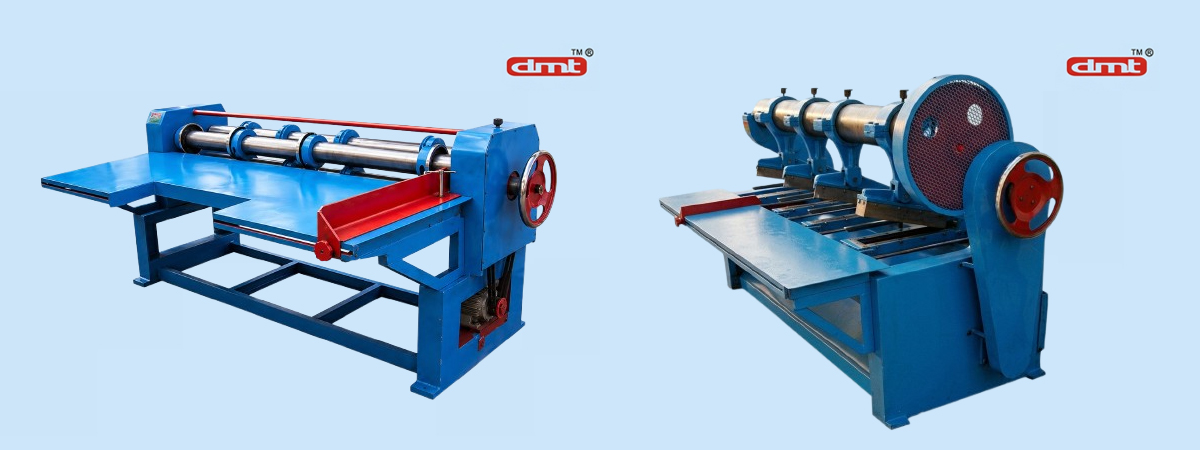

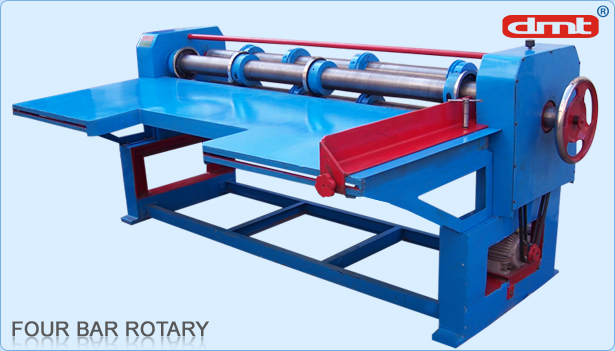

4-Bar Rotary slittering & creasing machine

With 4 Set Of Slittering Dies & Sets Of Creasing Dies. The Machine Has Two Pairs Of Shafts. The Front Pair Is With Cutting Dies And Rear Pair Is With Creasing Die. The Lower Shaft Of Each Pair Can Be Raised Or Lowered By Revolving Side Wheel Depending On Ply Of The Board. For Easy Feeding Two Guides Are Provided. (Output – 300ft/min)

Technical Data

Size	Motor H.P.	Weight App. (MT.)	Floor Space
65″	3	1.7	7′ x 5′
75″	3	2.0	8′ x 5′
85″	3	2.2	9′ x 5′
95″	3	2.8	10′ x 5′
105″	3	3.4	11′ x 5′

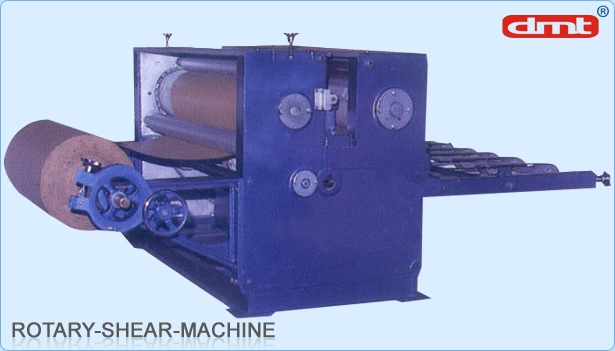

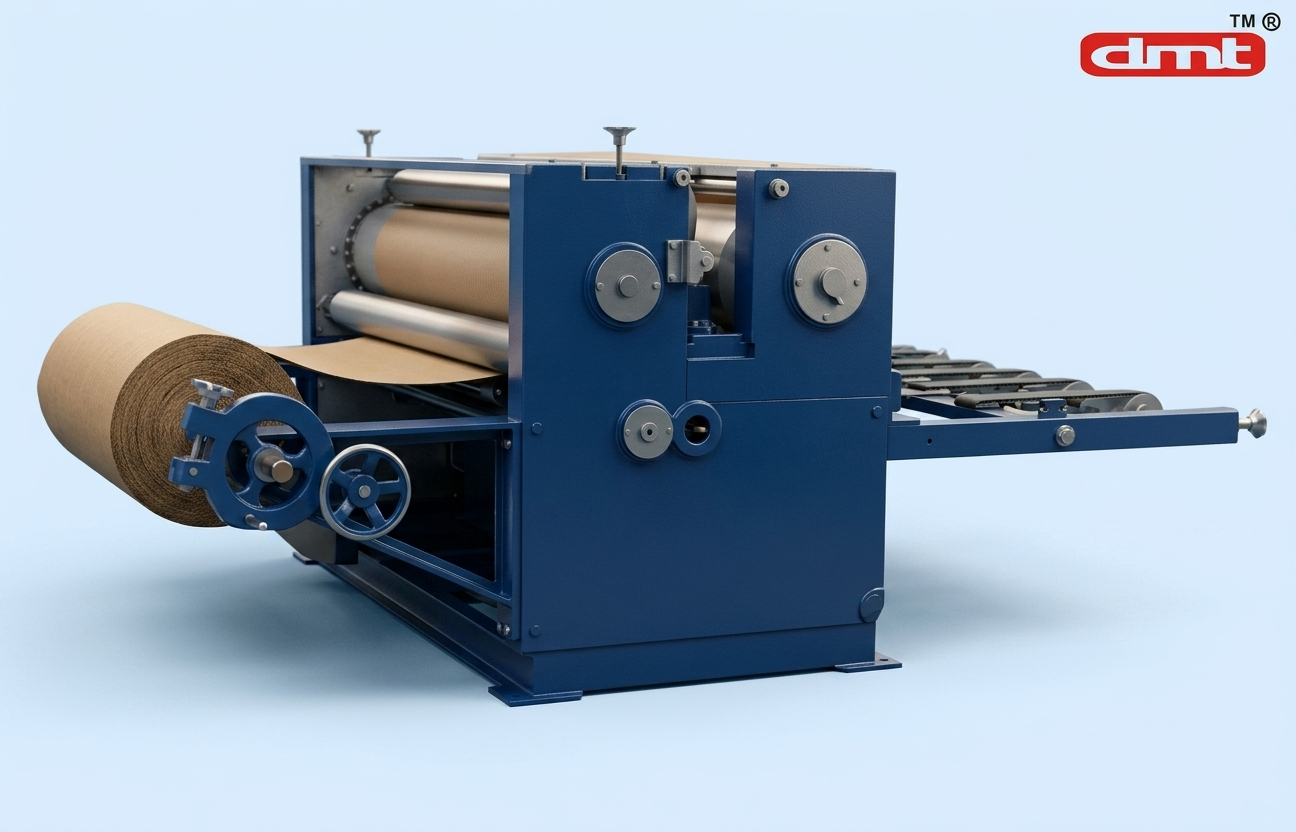

ROTARY SHEAR

High Speed Reels To Sheet Cutter As Well As 2 Ply Corrugated Board This Machine Can Also Be Operated In Alignment With Corrugation Machine. [Cutting Leading – (Min – 10″) / (Max – 120″)]

Technical Data

Size	Motor H.P.	Floor Space
36″	3	4′ x 8′
46″	3	5′ x 8′
52″	3	6′ x 8′
95″	3	7′ x 8′

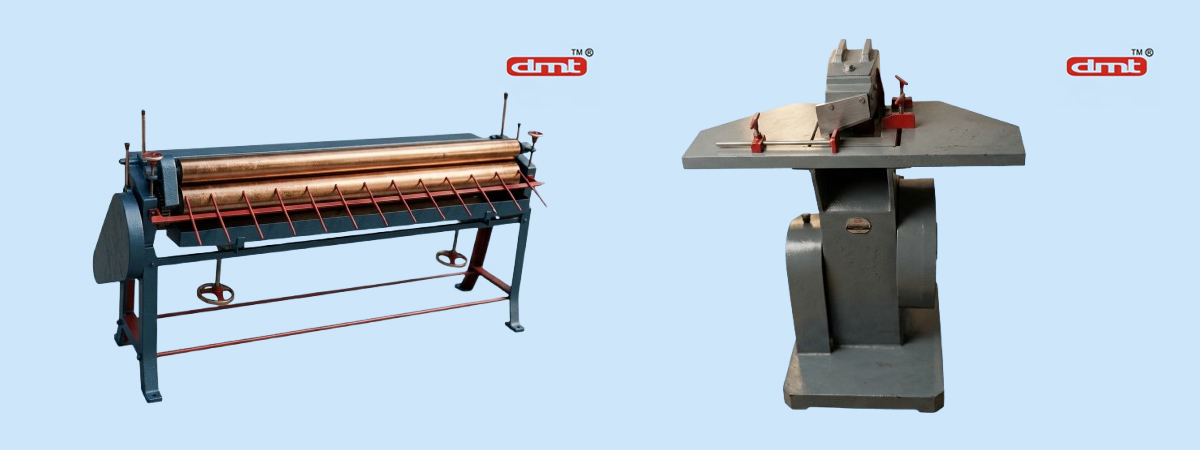

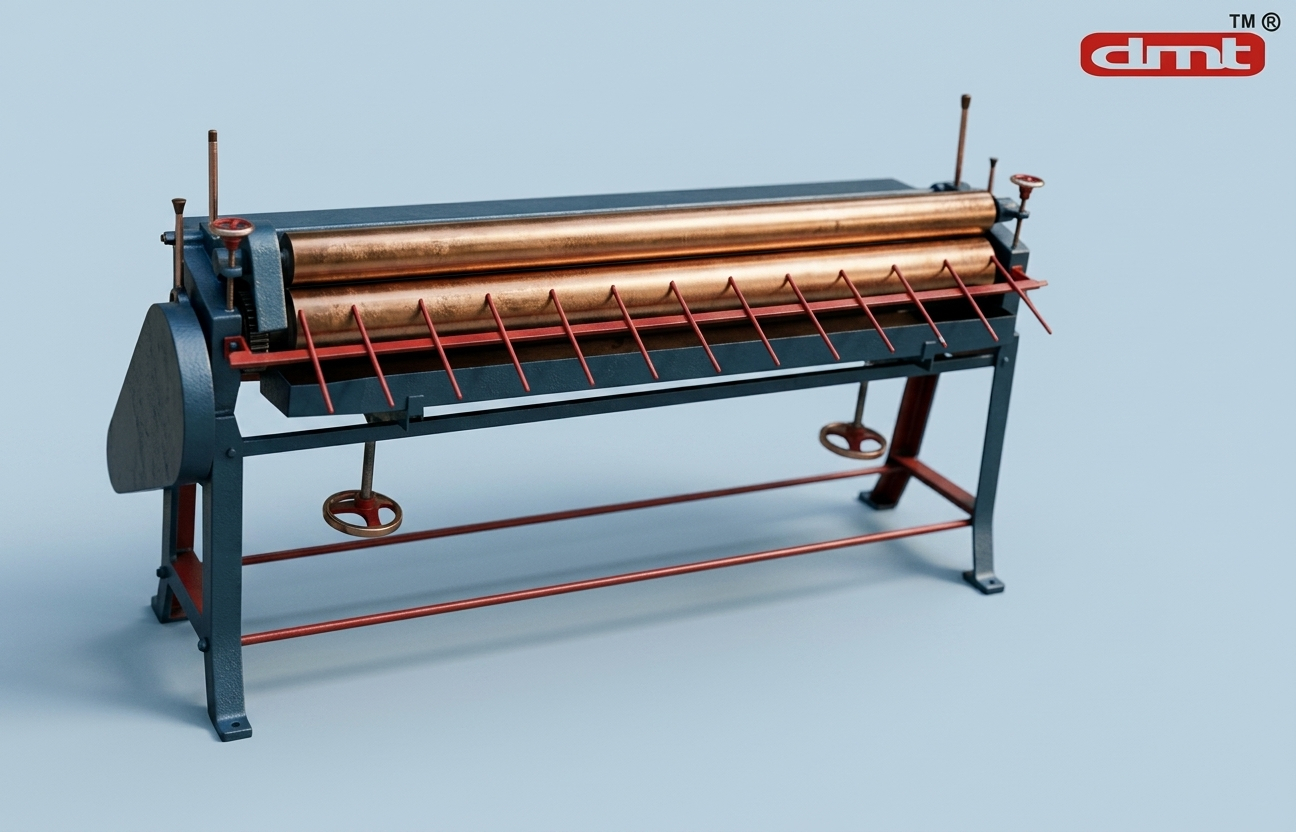

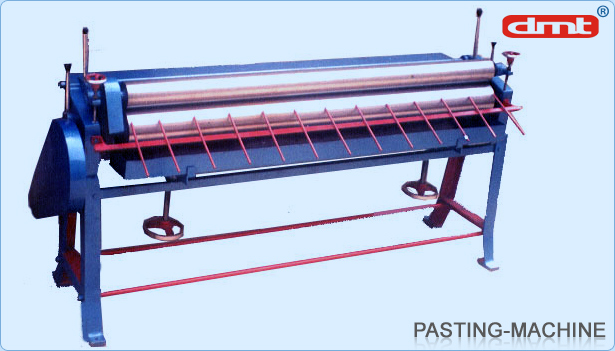

Pasting Machine

Sheet Pasting Machine is Meant For Gluing The Fluted Side Of Two Ply.

Technical Data

Size	Motor H.P.	Weight App. (MT.)	Floor Space
48″	1	0.45	6′ x 3.5′
65″	1	0.55	7′ x 3.5′
75″	1	0.65	8′ x 3.5′
85″	1	0.75	9′ x 3.5′
95″	2	0.85	10′ x 3.5′
105″	2	0.95	11′ x 3.5′

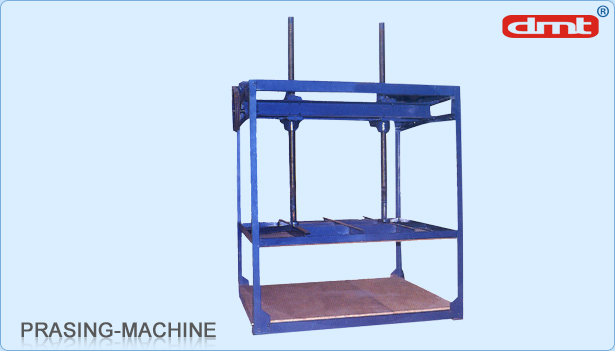

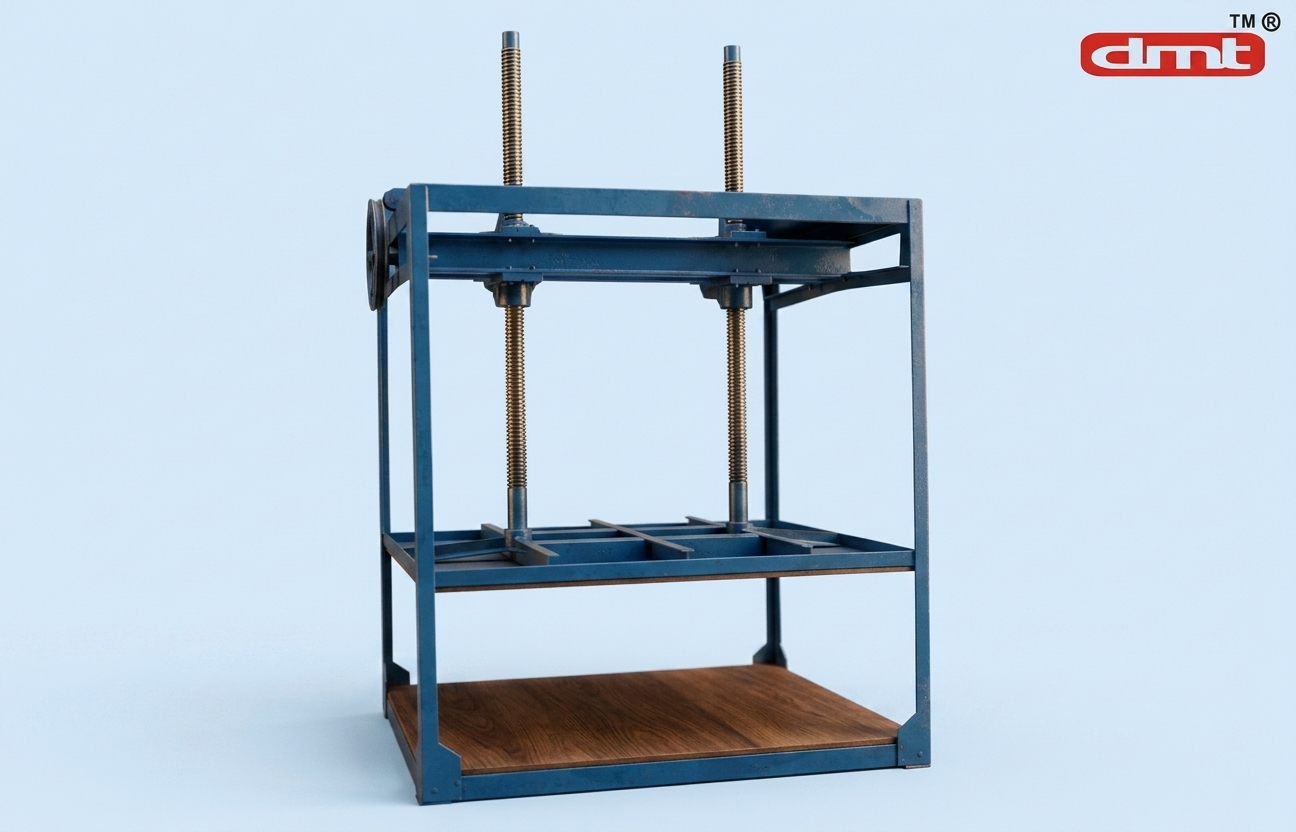

Prasing Machine

Sheet Pressing Machine Is Used For Pressing Of Corrugated Sheets. The Glued Sheets Are Pressurized For Some Time By Lowering Upper Moving Plate.

Technical Data

Size	Motor H.P.	Floor Space
52″ x 60″	2	5.5′ x 5.5′
65″ x 75″	2	5.5′ x 6.5′
65″ x 105″	3	5.5′ x 9.5′

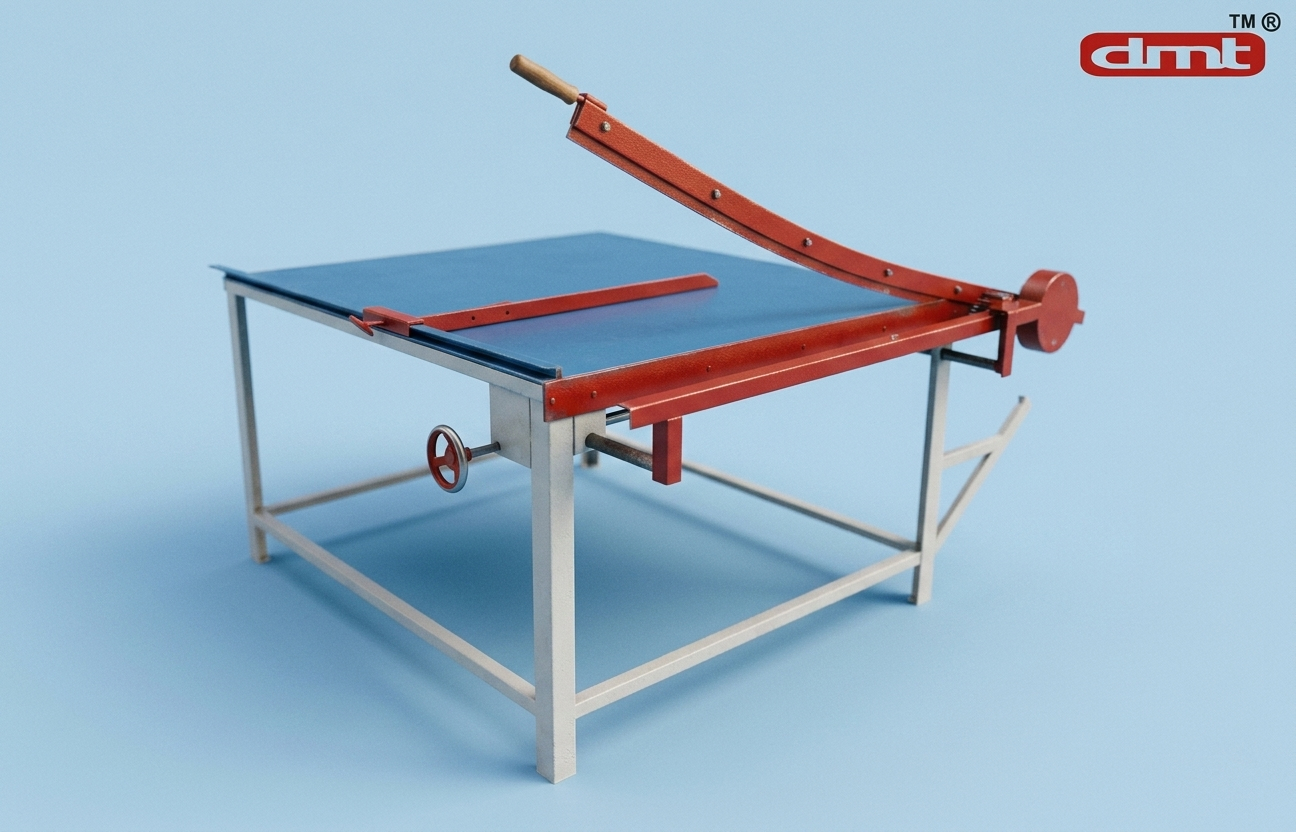

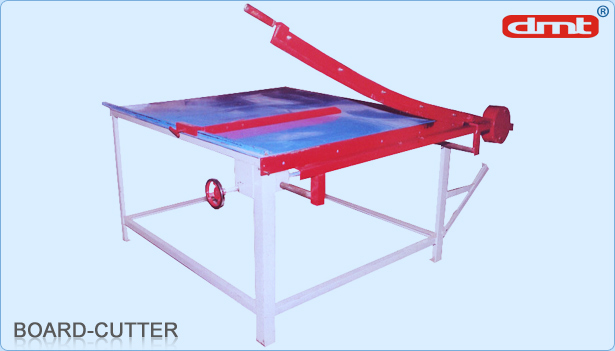

Board Cutter Machine

Heavy Duty Hand Operated Machine Used To Cut The Paper Or Corrugated Board.

Technical Data

Size	Weight App. (MT.)	Floor Space
52″ x 60″	0.70	5′ x 6′
52″ x 75″	0.75	5′ x 7.5′
65″ x 75″	0.85	5.5′ x 7.5′

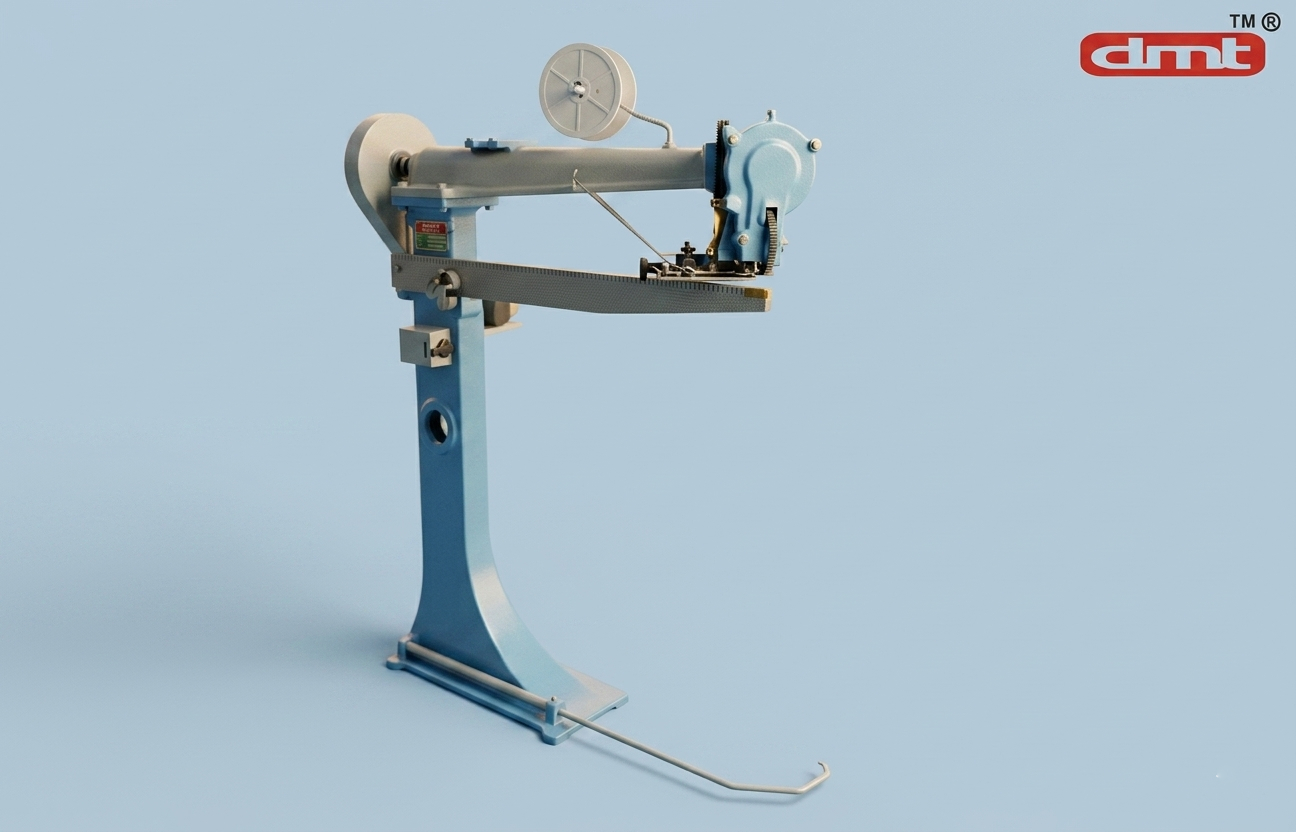

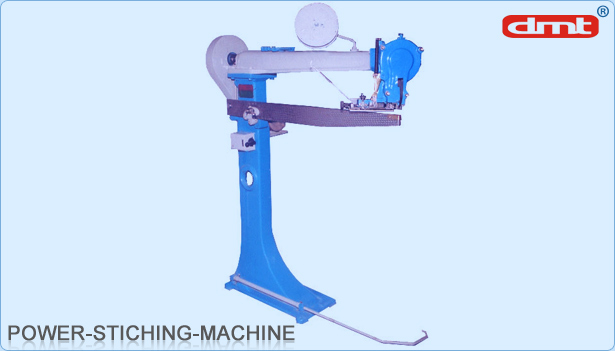

Power Stiching Machine

It Is Used To Stitch The Card Board And Corrugated Board. (Output Stitch – 250pins/min)

Technical Data

Size	Heating Load
36″	0.5
42″	0.5
48″	0.5

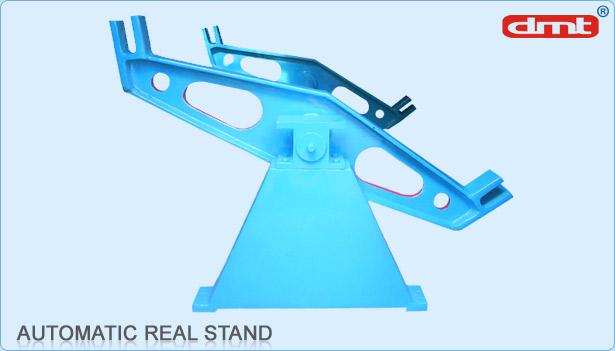

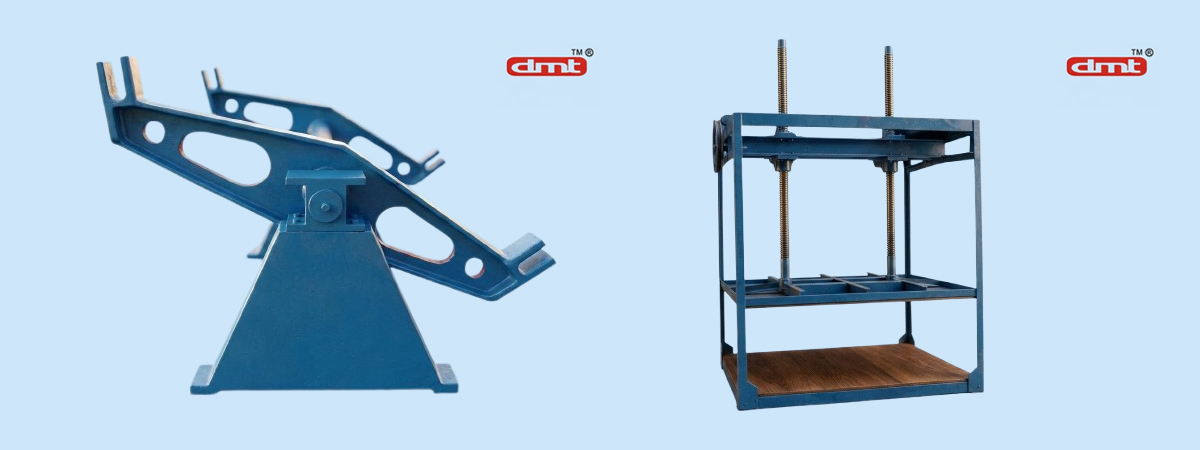

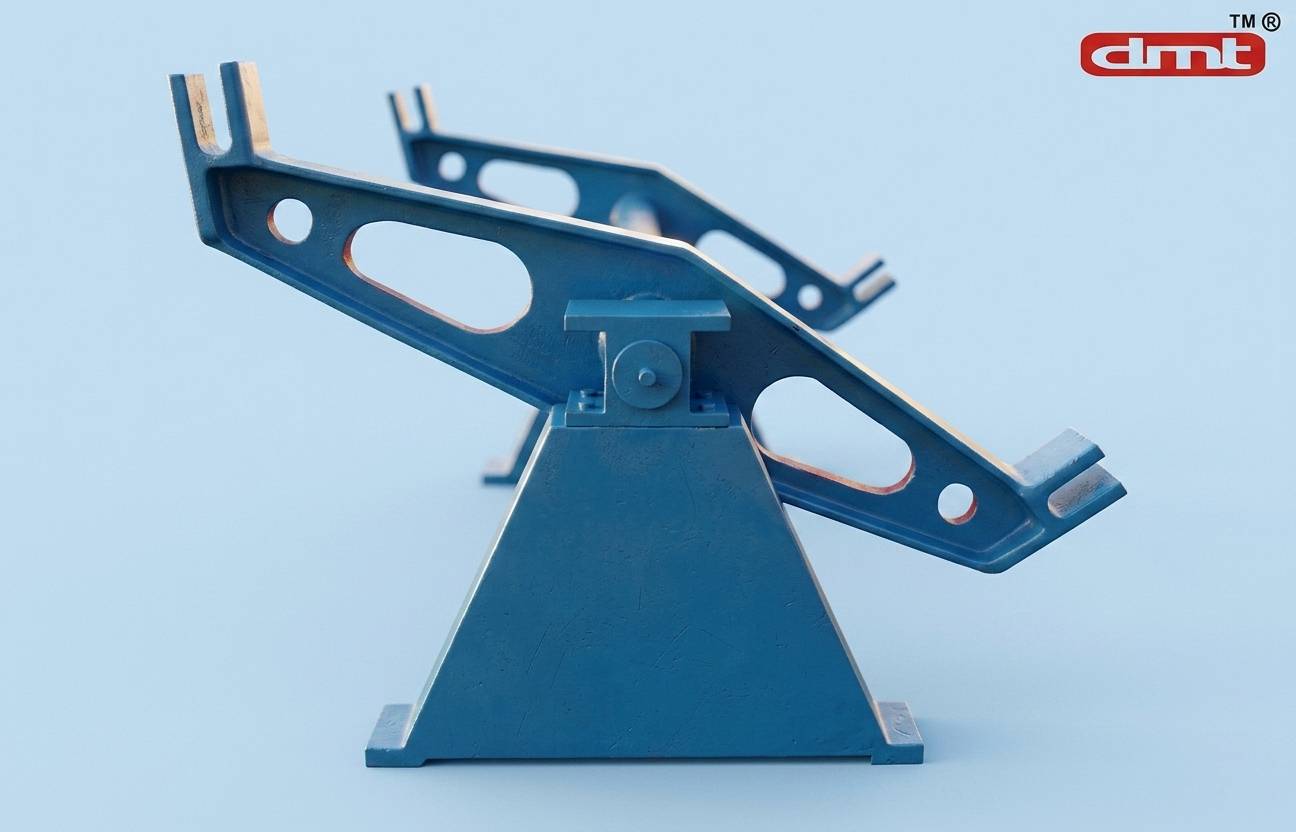

Automatic Real Stand Machine

It Is Used To Stitch The Card Board And Corrugated Board.

Technical Data

Size	Motor H.P.
36″	0.5
42″	0.5
48″	0.5

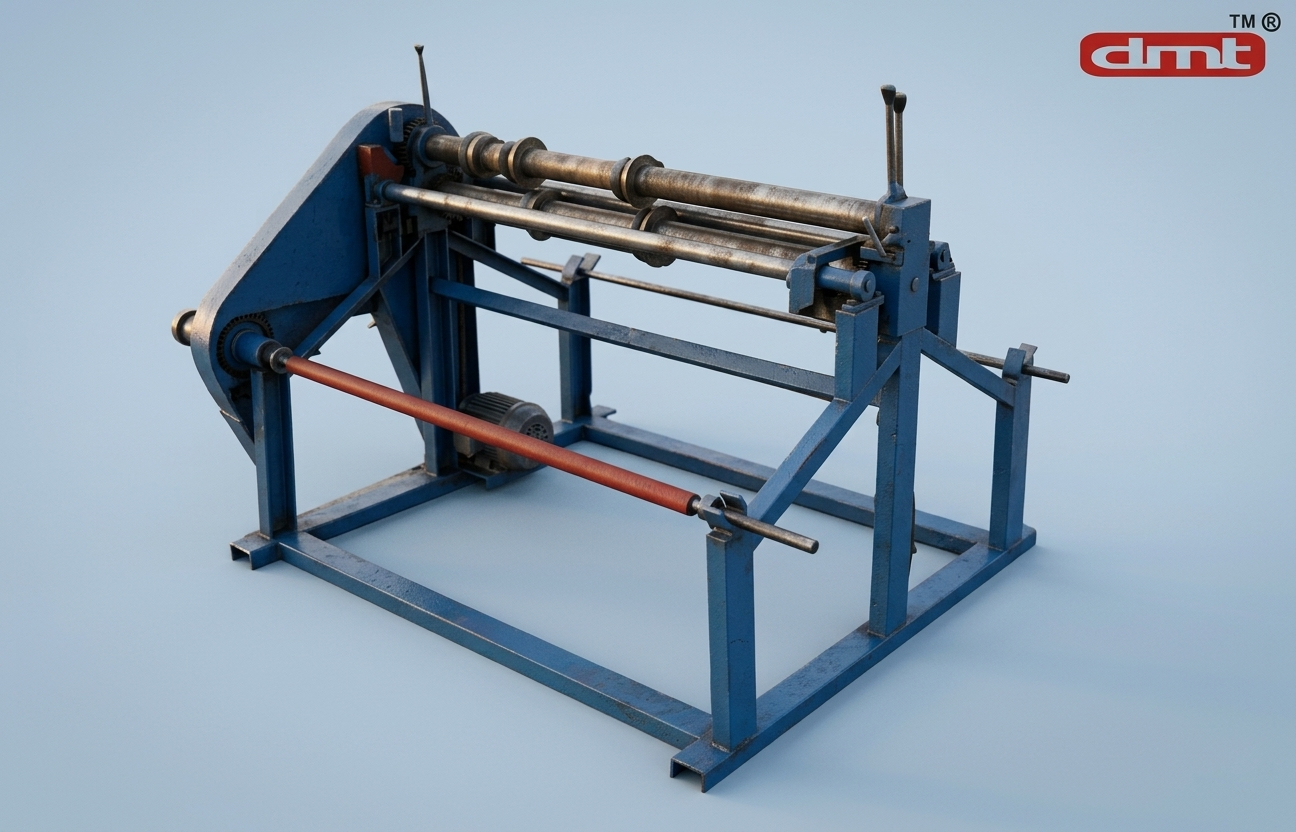

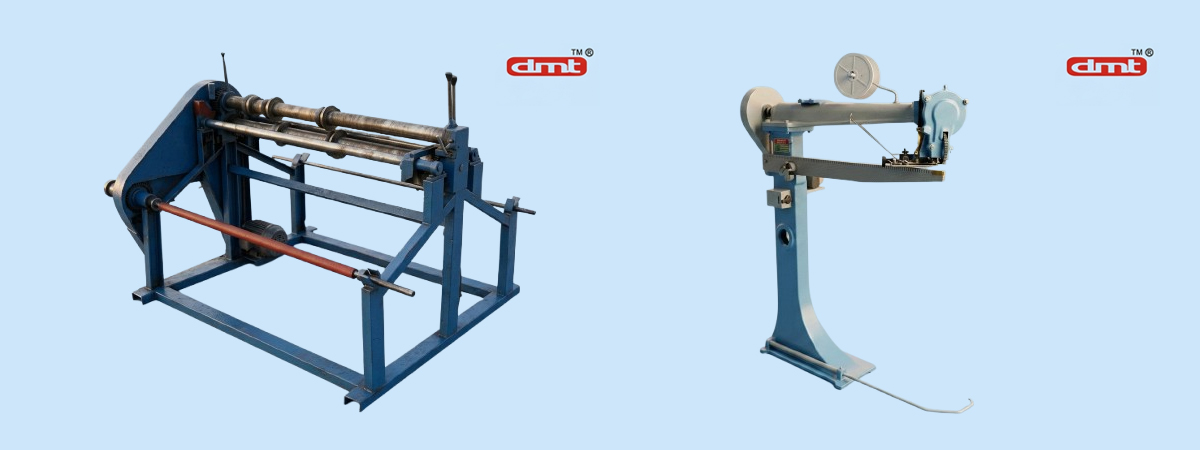

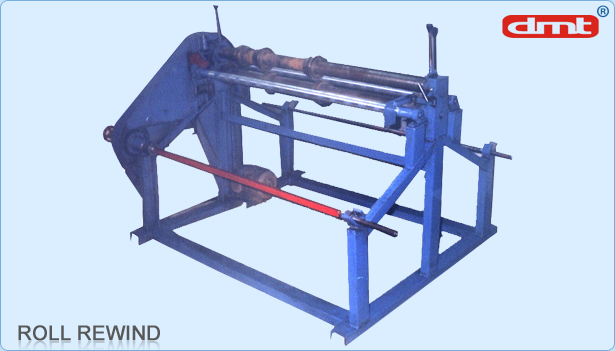

Roll Rewind Machine

It Is Used To Roll Rewinding Machine, Four Cutter Set.

Technical Data

Size	Motor H.P.
42″	1
52″	1
62″	1

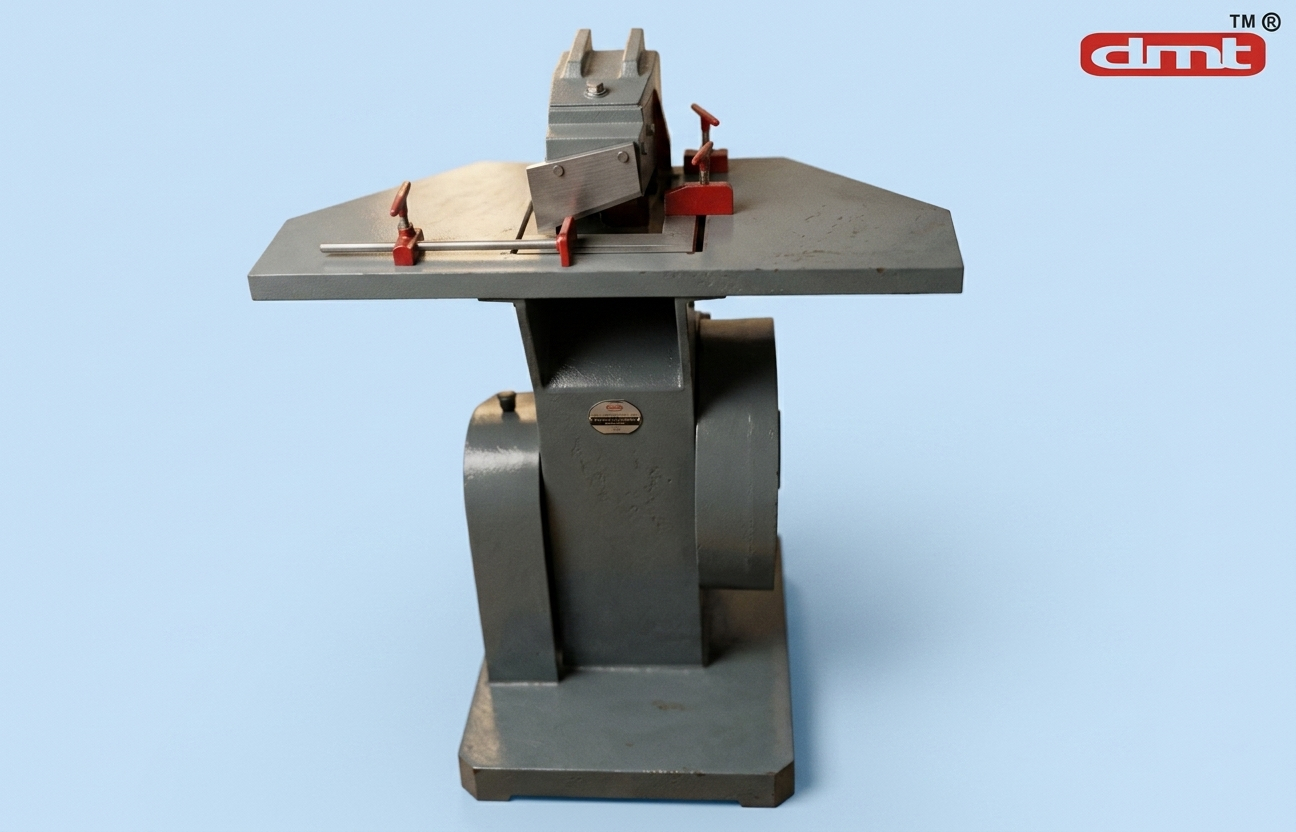

Corner Sloter Machine

It Is Used To Sheet Corner Cutting Machine With 1H.P Motor Sny Size.

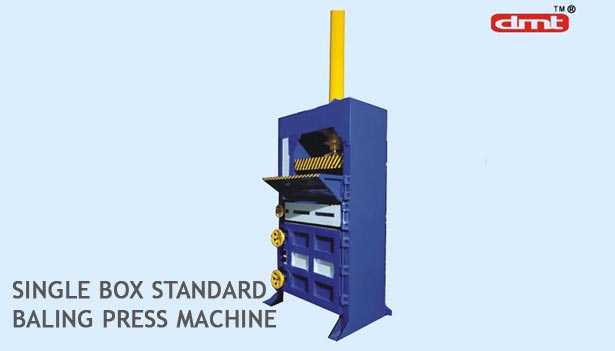

Single Box Standard Baling Press Machine

Bale Size 27” x 36” x 36”
→ Bale Weight in Cartoon 200kg-250kg
→ Bale Weight in Pet bottles 120kg-150kg
→ 7.5 HP Motor (Crompton / BB)
→ Pressure Controller
→ Pressure Watch
→ Speed Controller
→ Oil Gauge
→ Hand Liver
→ Filtter
→ Oil Tank 170-200ltr
